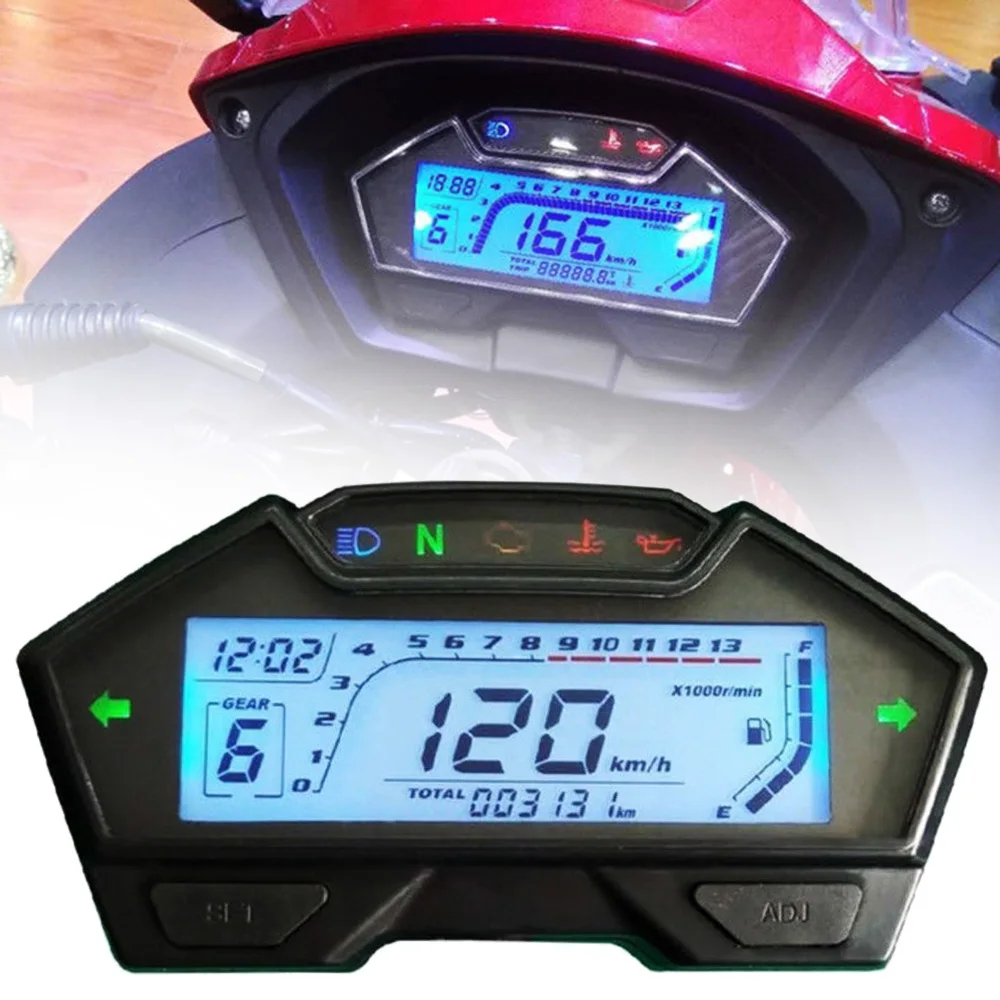

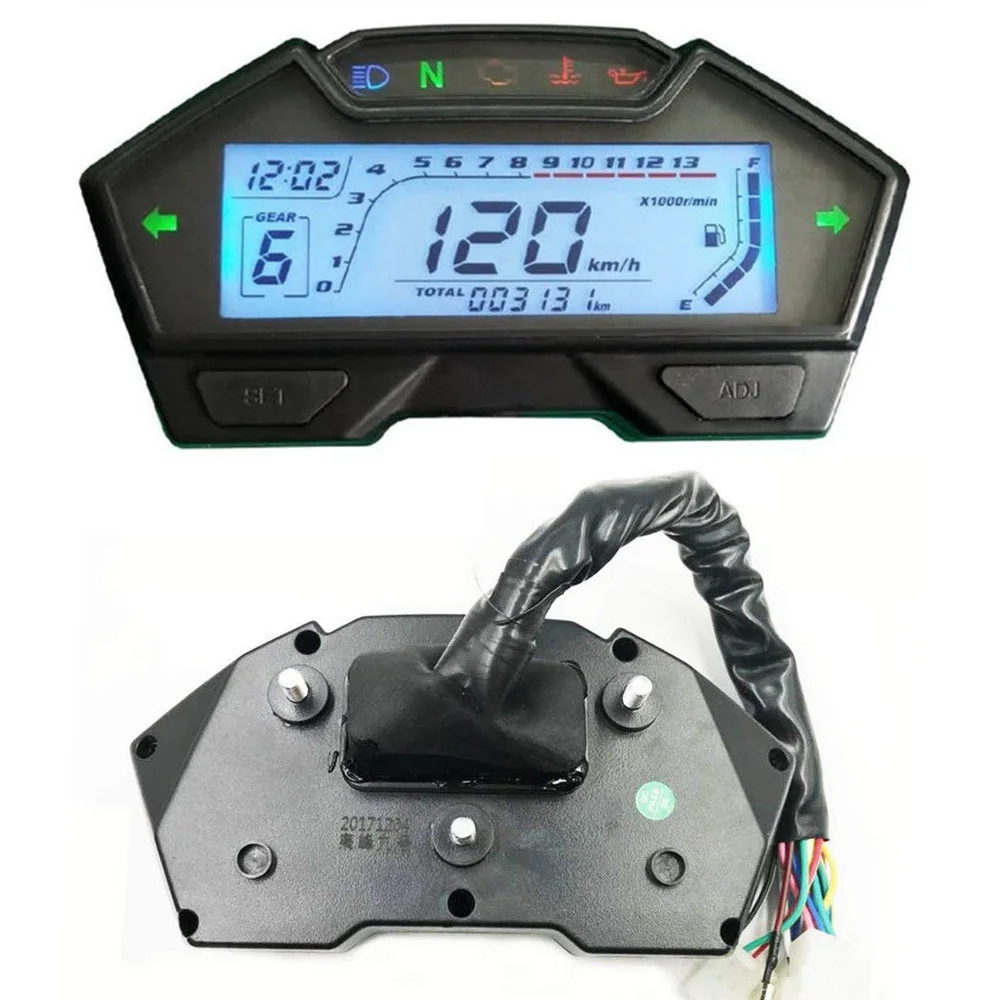

Motorcycle 12V LCD Digital Gauge Panel Speedometer

Description

Functions:

-Shift between mph and km/h

-Trip distance clears

-Digital display speed, speed range 0-199km/h or mph;

-Digital display trip distance, distance range 0-999.9km or miles;

-Digital display odo distance, distance range 0-99999.9km or miles;

-LED display fuel level, low fuel warnning and blinkering;

-Needle display rpm, range 0-13000

-LED shows left and right blinker, N, high-beam etc

-Time

-Adjustable wheel perimeter

-Adjustable pulse

Advantages:

1) It can be apply to different vehicles with different diameter;

2) It can be apply to different displacement vehicles;

3) Easy assembly, we provide install manual.

4) This speedometer send together with a speed sensor length 950mm; (the speedometer is hall effect, universal one)

Attention: RPM does not compatible with Electric fule Injection (EFI) engine

Skills requirement:

1) The instrument working power is DC12V.

2)  Metric system switching: Press and hold the SET button, the vehicle  speed will flash. At this time, press the ADJ button to modify it. If  there is no operation for 15 seconds, it will automatically exit and  take effect. You can also press it twice to exit and take effect.

3) LCD display, TOTAL maximum 99999.9, TRIP maximum 99.9. Short press SET  button, TOTAL and TRIP switch; in TRIP, long press ADJ button for 4  seconds, TRIP clear. Press and hold the ADJ button to power up, TOTAL minus 200, can be operated 3 times.

4) Change the oil prompt: every 2000km oil lamp is on, prompt to change  the oil, when the oil lamp is on, switch to TOTAL, press and hold the  ADJ button for 4 seconds, the oil lamp is off.

5) Clock: 12-hour system, long press the SET button, the vehicle speed  flashes, press the SET button once – once, the clock flashes, then press  the SET button shortly – once, the clock minute flashes. When flashing, short press the ADJ button to modify, no operation for 15 seconds, automatically exit and take effect. You can also press the SET button to exit and take effect. 6.  Background setting: You can set the speed of the vehicle, the number of  cylinders, the two-wire/three-wire sensor, and then press and hold the  SET button, then open the door. The LCD will jump from 0 to 9 and then  jump to the setting interface. The default display is 018 1 2. Position, engine fault light, water temperature light negative control; left and right turn signal, high beam, positive control

Package included:

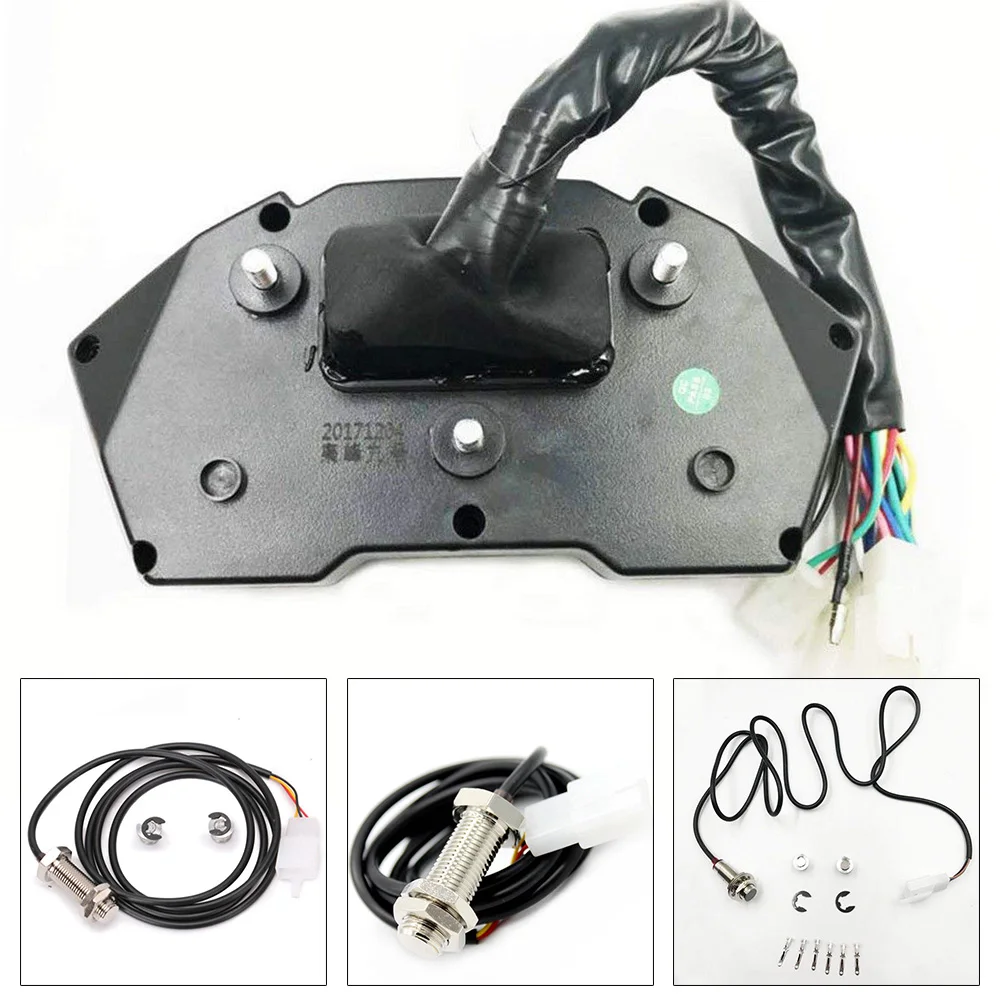

-1pc x speedometer

-1pc x sensor

-1set x mounting accessories

Note:

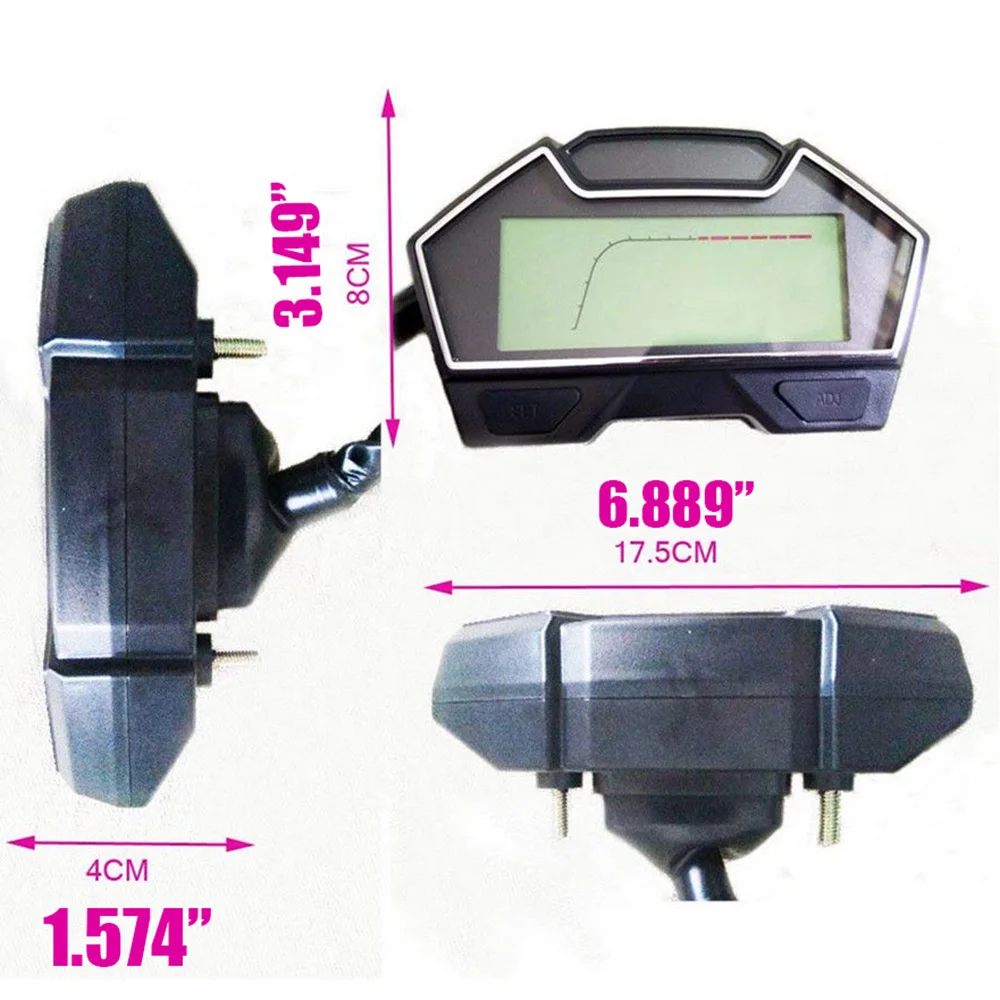

-Please allow 1-10mm difference due to manual measurement.

-Due to light and screen difference, the item’s color may be slightly different from the pictures.
